Choose the 12.8V 314Ah RV battery when longer reserve matters more than maximum output: 4,019.2Wh in the same 522 × 268 × 220mm enclosure as 230Ah, adding 1,075.2Wh / 36.5% more energy with 2,010W / 157A continuous output and Bluetooth 5.0 monitoring.
230AH OR 314AH?
The enclosure size is the same. Pick by priority, then use the Power Calculator to check the appliances you run.
314AH FEATURES
Choose 314Ah for the hours: it puts 1,075.2Wh / 36.5% more energy than 230Ah in the same enclosure, while its 2,010W continuous limit defines which loads it is built to serve.

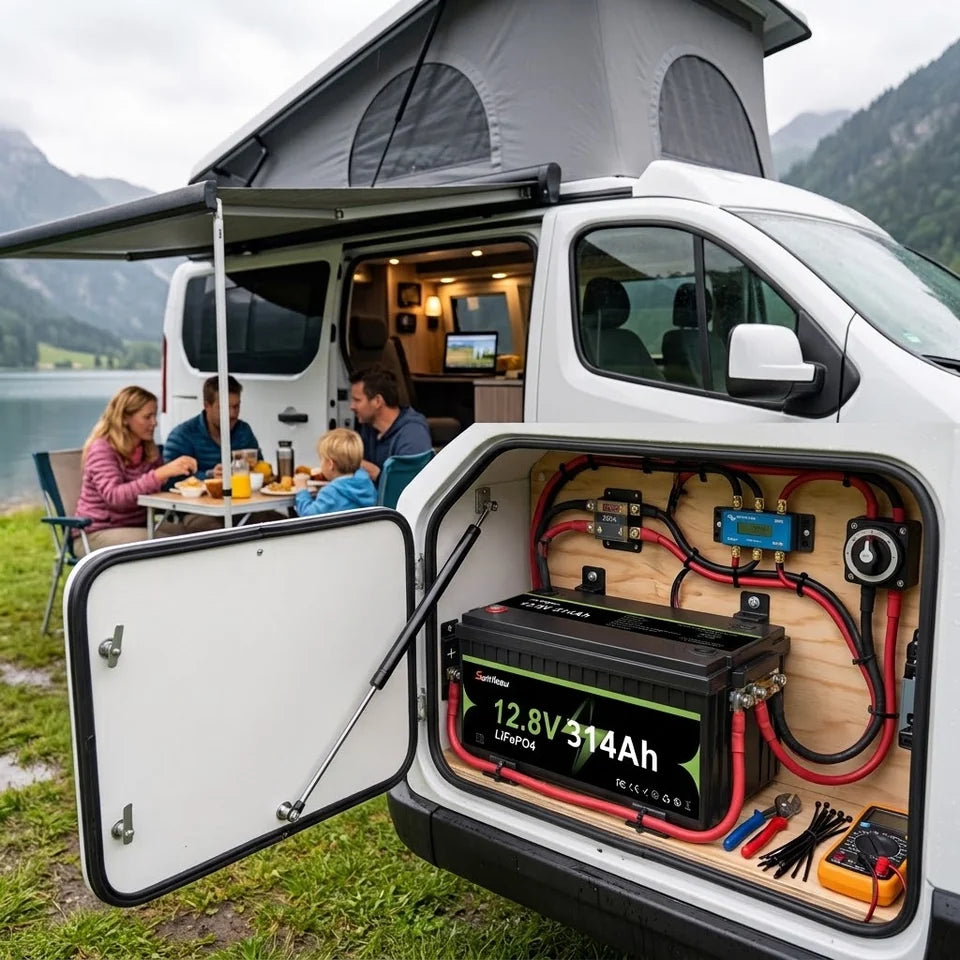

KEEP MORE RESERVE WHEN SUNLIGHT IS LIMITED

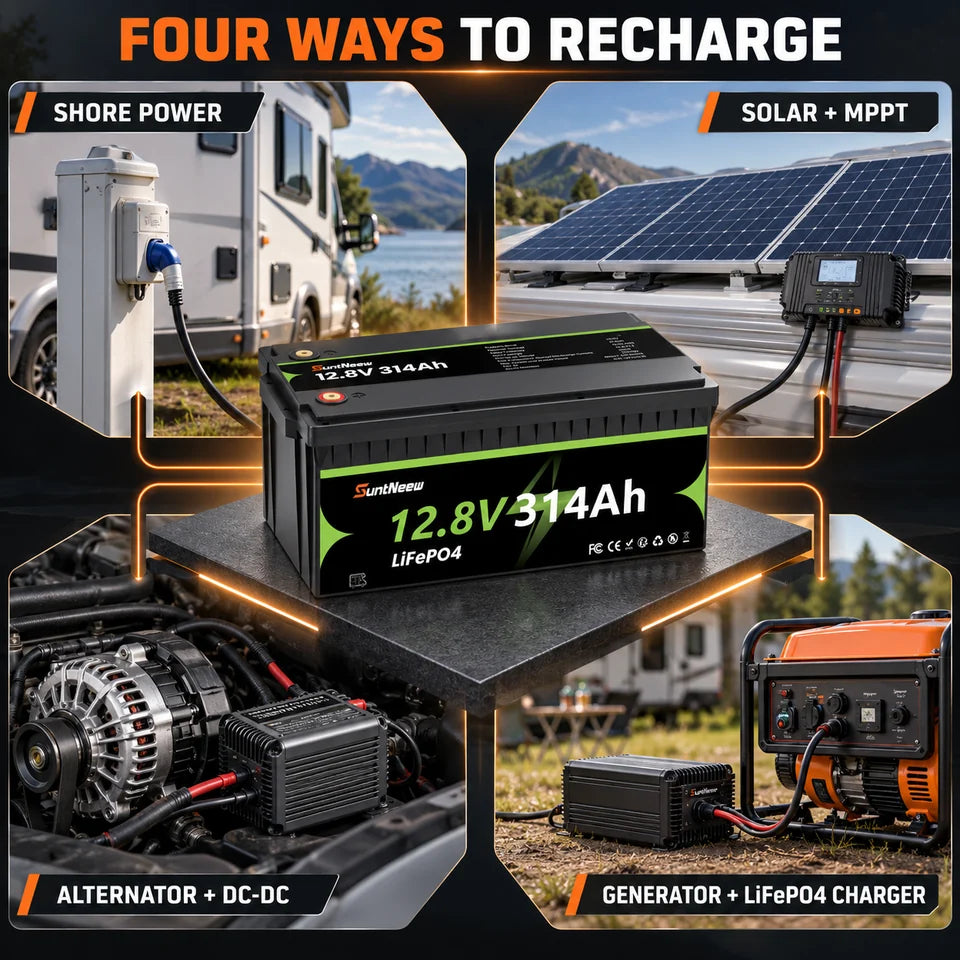

When cloud cover reduces solar harvest and the next useful charge may be later, 4,019.2Wh keeps more reserve behind refrigeration, networking and overnight essentials. Pair the battery with a LiFePO4-compatible charger and correctly sized MPPT system.

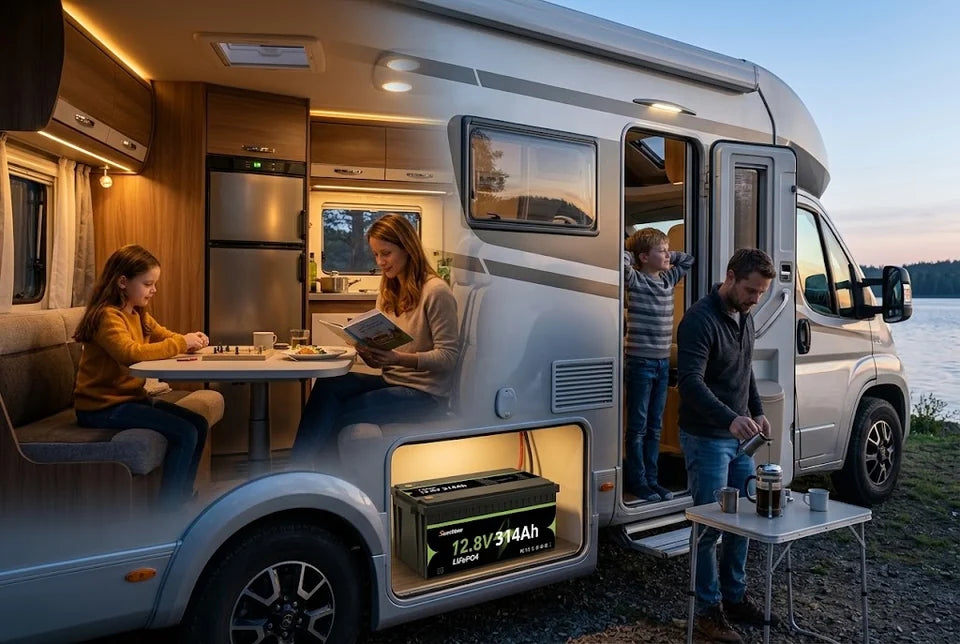

NIGHT TO NEXT MORNING
Keep the fridge, lights, network and planned overnight loads running longer in the same 522 × 268 × 220mm enclosure used by the 230Ah model. Check your real load profile before sizing the inverter and wiring.

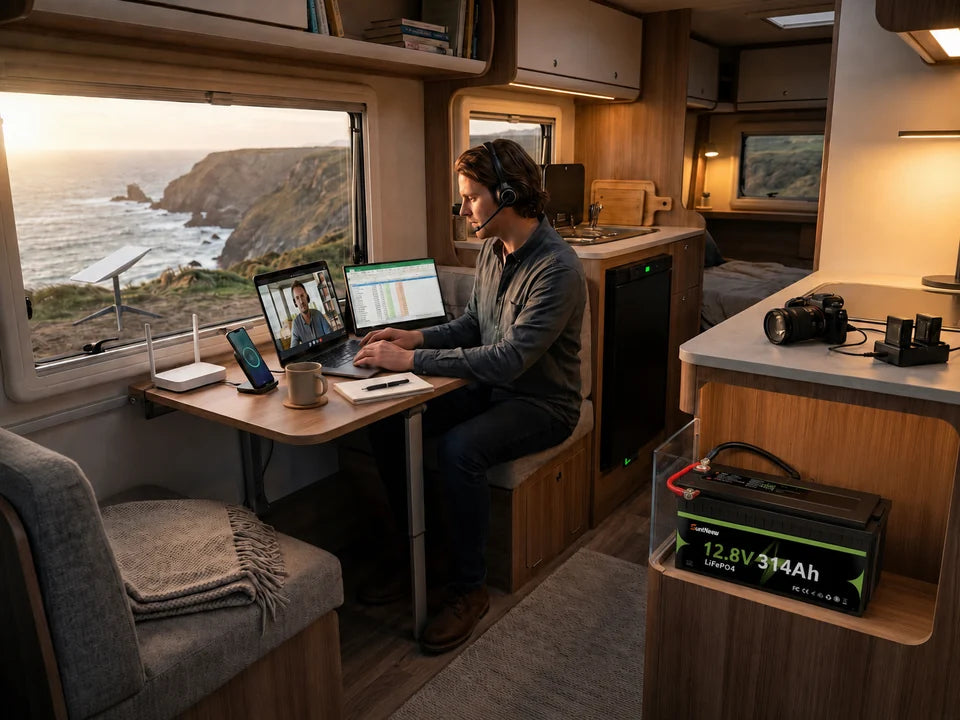

WORK OFF GRID
Support a laptop, monitor, network gear and other planned 12V loads while you work from an RV. The 314Ah model prioritizes reserve; keep simultaneous demand within its 2,010W / 157A continuous limit.

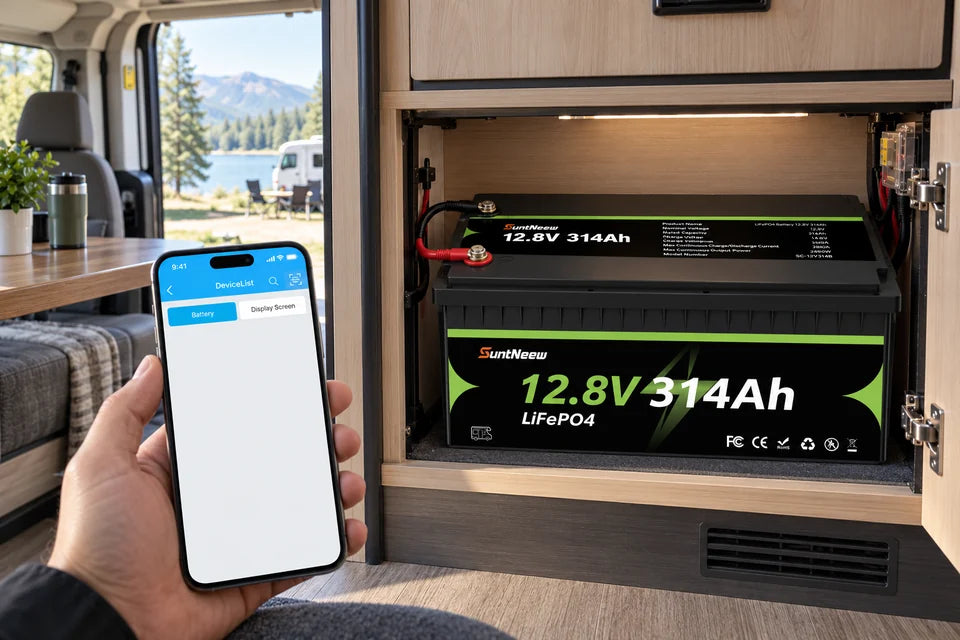

CHECK STATUS BEFORE YOU CHANGE THE LOAD
Review state of charge, voltage, current and temperature in the supported app before you adjust loads or charging sources. Use the battery manual and app instructions for available functions.
DOCUMENTED SUPPORT
Use the current English manual for operating limits, charging sequence and safety steps. Keep model-matched compliance documents with your installation records, and confirm service terms for the 314Ah model before purchase.

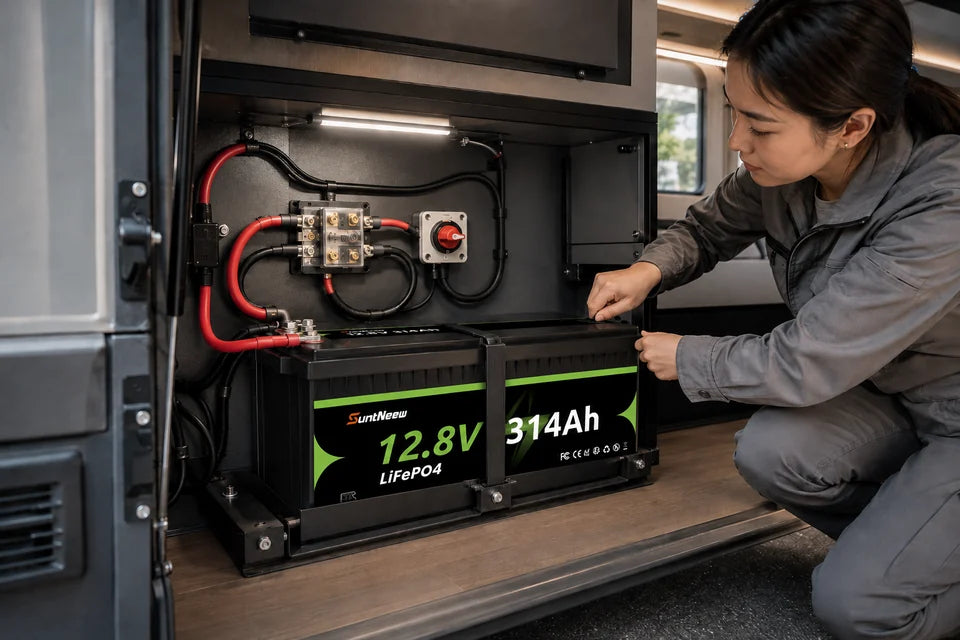

SECURE A 26KG BATTERY
The 522 × 268 × 220mm enclosure fits the same stated footprint as 230Ah, but the 314Ah battery weighs 26kg. Confirm support structure, hold-downs, terminal access, conductor sizing and fuse placement for the complete system.

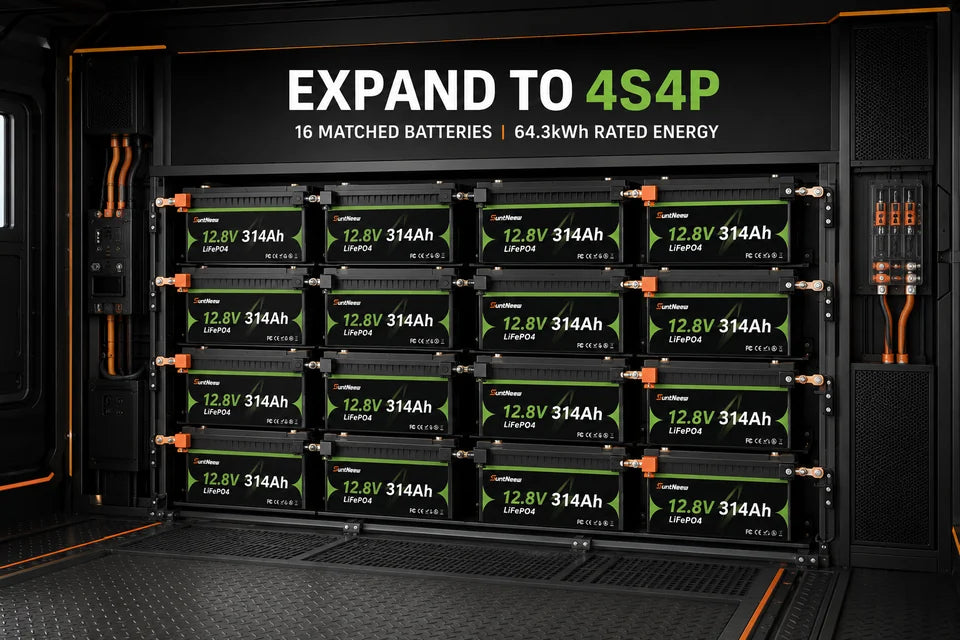

SCALE A MATCHED BANK
Use matched 314Ah batteries with the same model, state of charge and installation plan. The documented 4S4P layout reaches 16 batteries and 64.3kWh rated energy; design conductors, over-current protection and restraint together.
Verified product data
The key capacity, charging, protection and installation values are transcribed from the current English product manual. Use the manual for the full operating sequence and safety limits.
Installation planning
Product documentation
314AH RV BATTERY
Product support, documents and installation checks for your 12.8V 314Ah RV battery.
Use only documents that match the product label. Public technical documents are available from the product page or technology center where shown.
314Ah planning
The rated energy is 4,019.2Wh from the documented 12.8V and 314Ah ratings. Actual usable energy depends on operating limits, load and system settings.
157A is the maximum continuous charge/discharge value used for normal system sizing. 200A is the BMS protection threshold, not a continuous operating rating. Use 63A as the recommended charge-current reference and size every system component to its lowest limit.
The stated 522 × 268 × 220 mm enclosure dimensions are the same, but the 314Ah battery weighs 26kg. Recheck structure, restraint, access and the complete electrical design for the exact model.

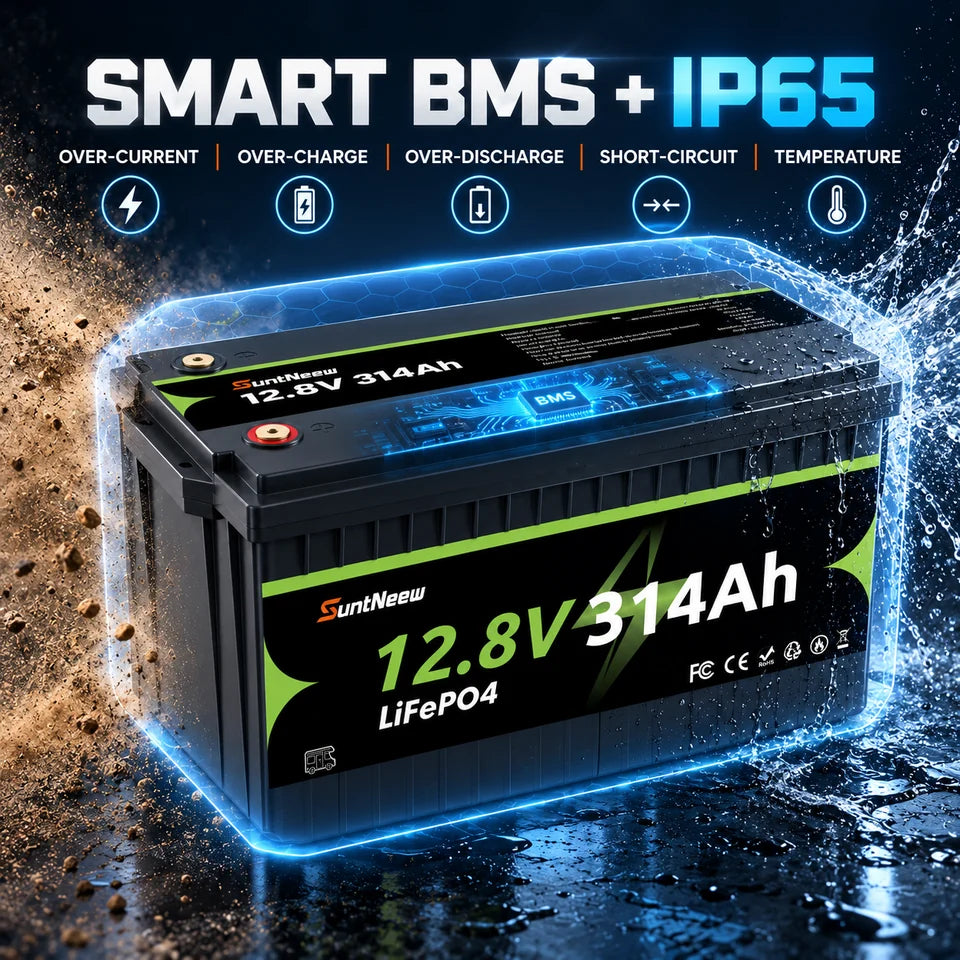

IP65 indicates a dust-tight enclosure with protection against water jets. It is not an immersion rating; keep the battery location, terminals and cable routing protected and follow the installation manual.

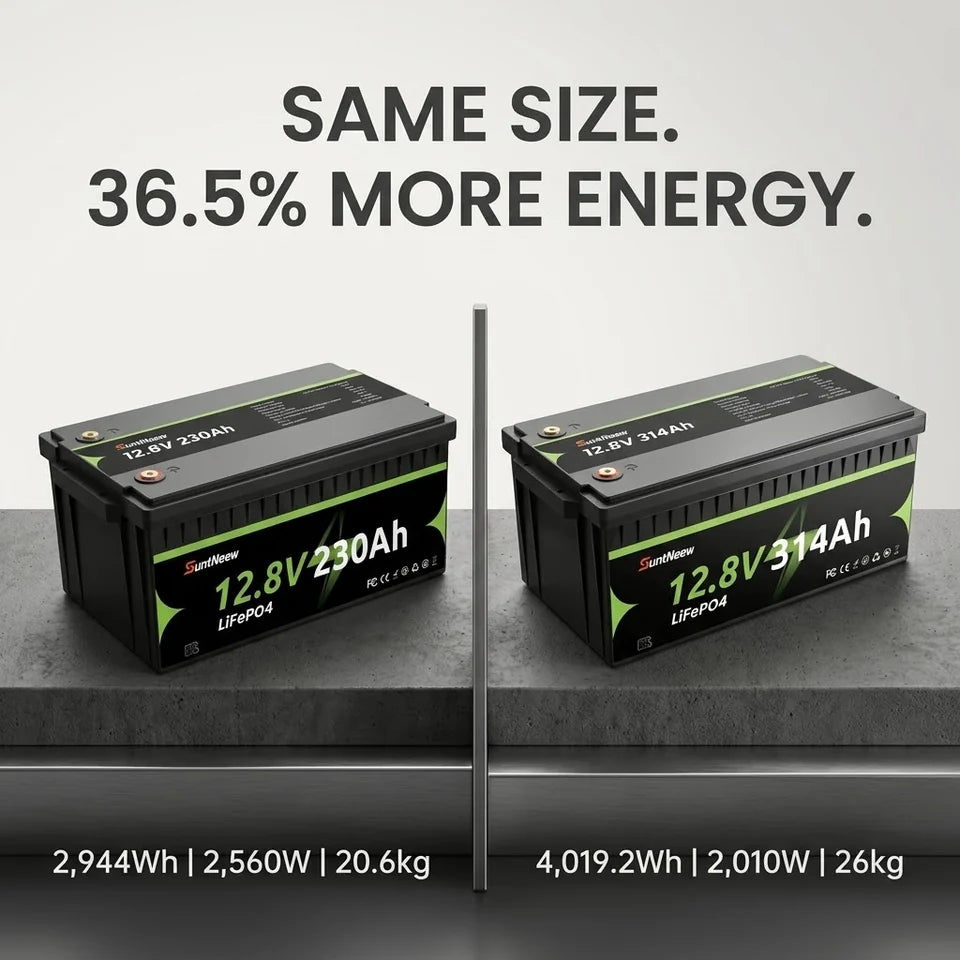

Choose 314Ah when 2,010W covers your simultaneous load and you want 1,075.2Wh / 36.5% more reserve in the same 522 × 268 × 220mm enclosure. Choose 230Ah when 2,944Wh covers your time between charges and you want 2,560W continuous output, 5.4kg less weight and the lower current single-unit price. Test your devices in the Power Planner.
The current English product manual is available in Documents on this page. Review it together with the charger, inverter and RV manufacturer instructions before installation.
