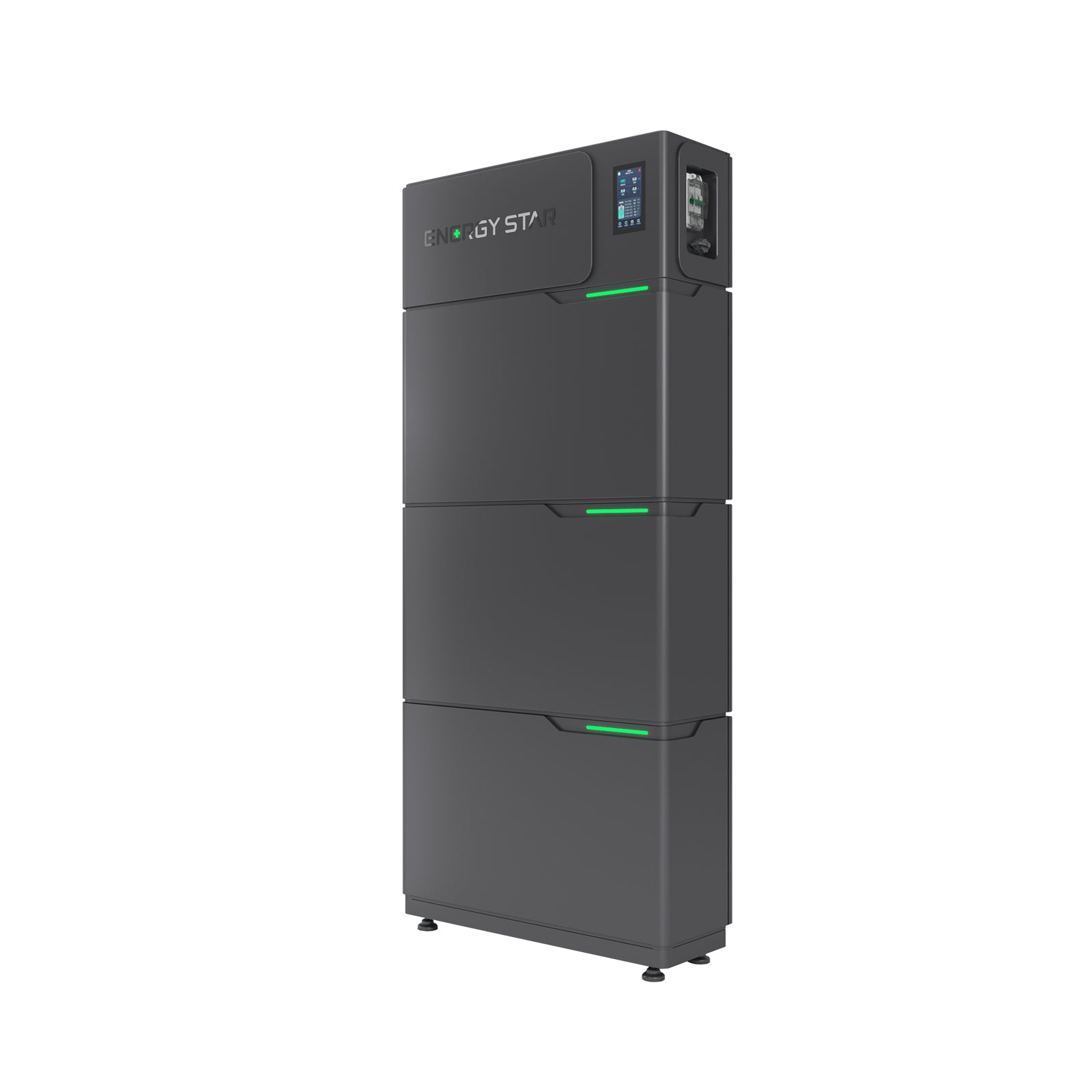

ESS-VH15A

Cell Type: Lithium Iron Phosphate (LFP)
Battery module：VH(5.12kWh,51.2V,90kg)
Battery module energy：5.12kWh
Number of battery modules：3
Available power：15.36kWh
Rated voltage：153.6V
Voltage range：129.6-172.8V
Rated capacity：100Ah
Maximum output current：50A
Peak output current：70A,5s
Depth of discharge：90%
Number of cycles: 5000 times
Display: LCD touch screen, LED battery indicator
Control mode: intelligent BMS
Methods of Communication：CAN/RS485
Size (H*W*D)：1470*650*225 mm
weight：166±1kg
Degree of protection: IP65
Cooling method: natural convection
Installation: floor-mounted
Installation Environment: Indoor/Outdoor
Certifications：UN38.3/MSDS/IEC 62619/CE-EMC
